WALL AIR CONDITIONER MITSUBISHI HEAVY DUTYVY DUTY DXK18YW-W1 17276BTU INVERTER_0

WALL AIR CONDITIONER MITSUBISHI HEAVY DUTYVY DUTY DXK18YW-W1 17276BTU INVERTER_1

WALL AIR CONDITIONER MITSUBISHI HEAVY DUTYVY DUTY DXK18YW-W1 17276BTU INVERTER_2

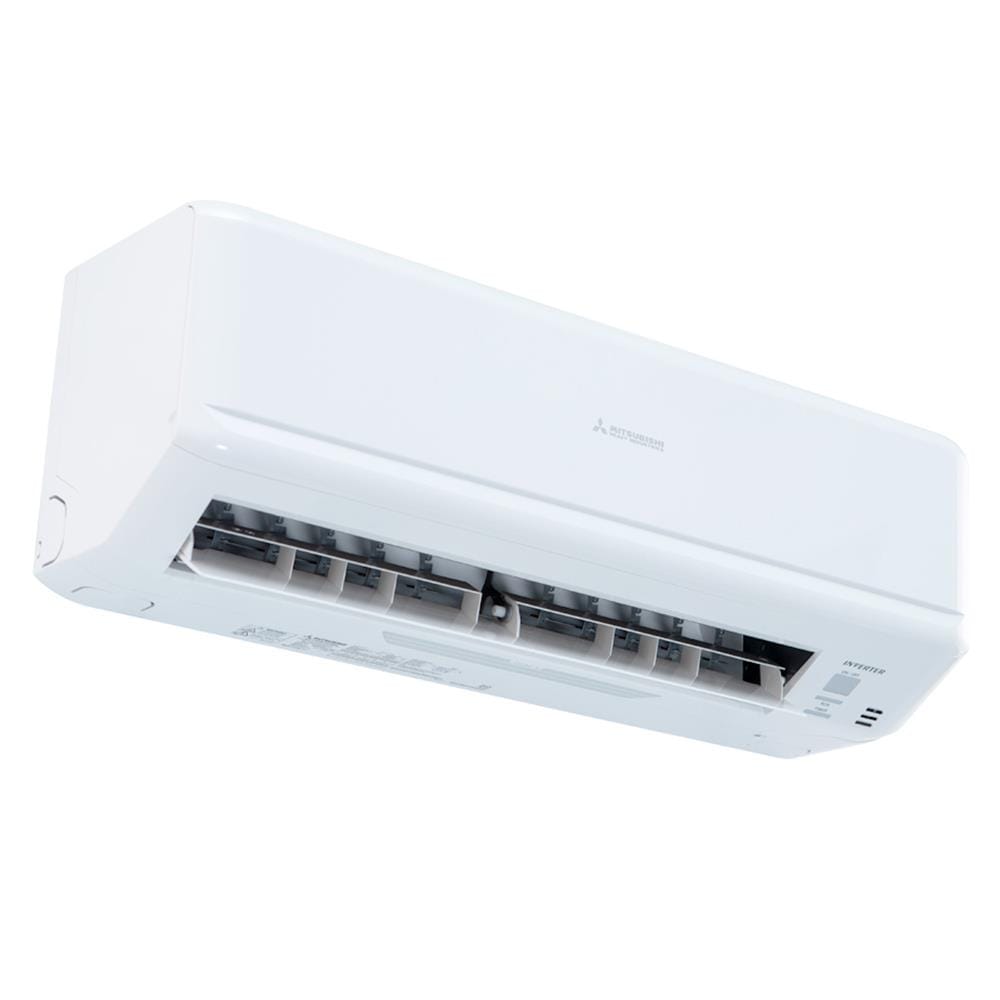

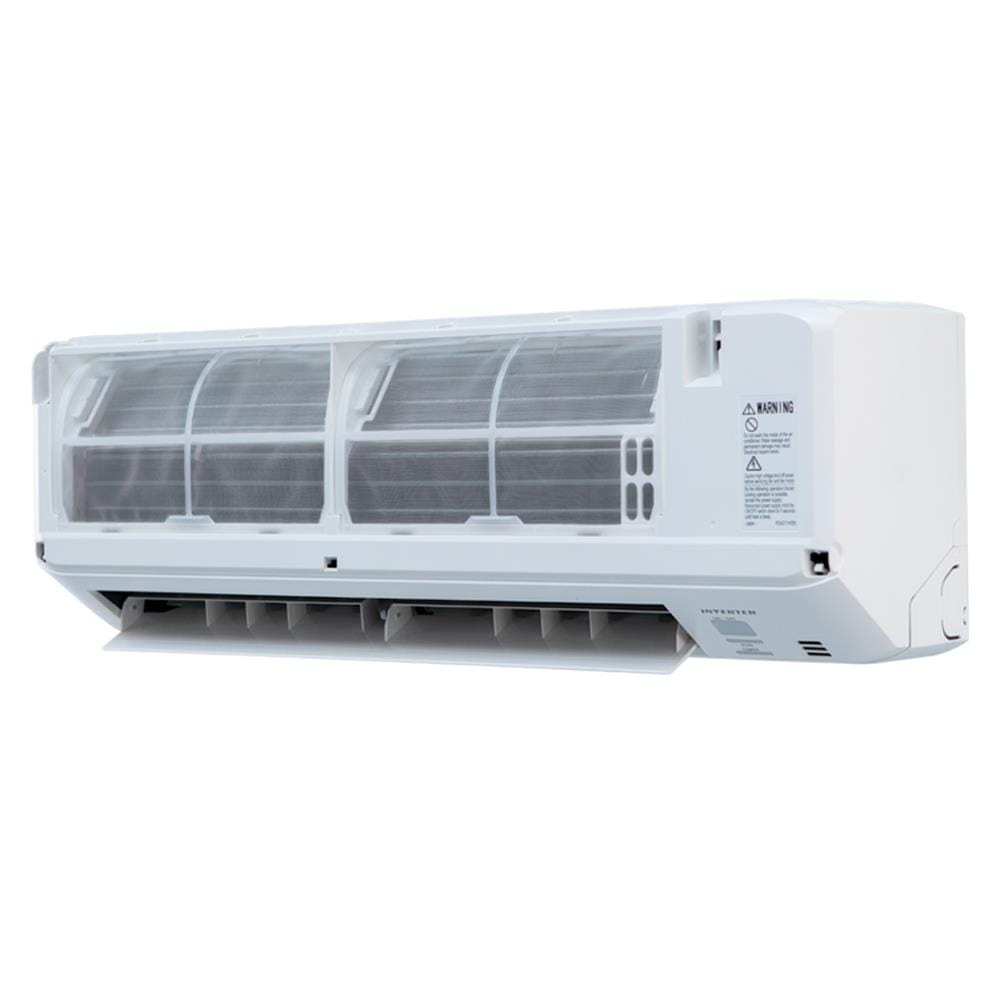

WALL AIR CONDITIONER MITSUBISHI HEAVY DUTYVY DUTY DXK18YW-W1 17276BTU INVERTER

Enhance the cooling experience with this wall air conditioner from MITSUBISHI HEAVY DUTY. This air conditioner comes with Jet Flow technology to produce quick cooling all over the room. The air conditioner features Natural Solar Filter to eliminate unpleasant odors. Plus, this air conditioner allows you to relax with fresh cool air without any concerns.

Properties

Jet Flow technology produces quick cooling all over the room.

Natural Solar Filter eliminates unpleasant odors efficiently.

Self-Cleaning Operation keeps the evaporator dry and inhibits growth of mold

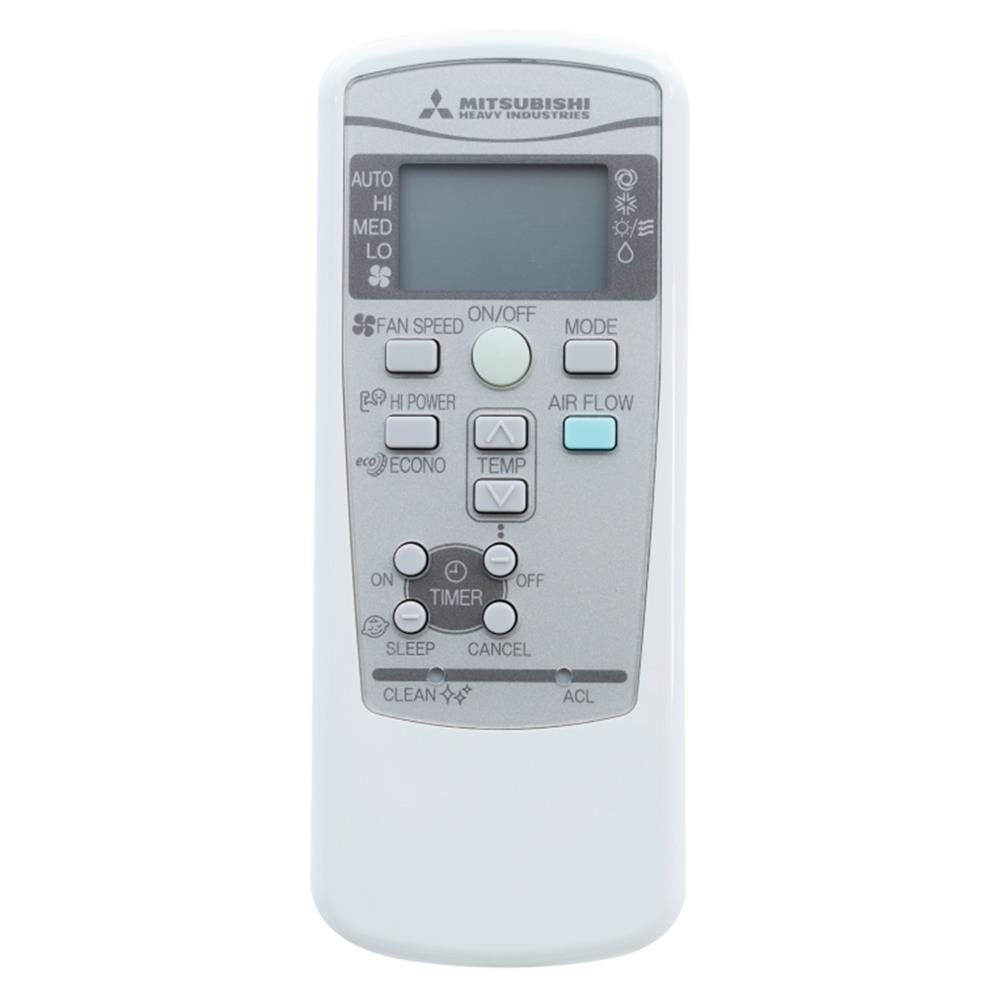

24-hour On/Off Timer Operation

Self-diagnosis system

Product Usage

Use as an air-conditioner.

Product Tips

Follow the instruction manual strictly and must be installed by technician

The air conditioner must be grounded.

Cautions

Ensure that the AC drain pipe is in the good condition all the time.

Do not touch the plate heat exchanger.

Make sure that the unit is grounded

Do not insert any objects into the outlet or the AC.

Do not install the product near flammable gas.

Do not use with the fuse which does not match the standard rating.

Do not install the unit on unstable surfaces

Keep the AC remote out of reach of children.

See All

xxxx
BRAND	MITSUBISHI HEAVY D
COLOR GROUP	WHITE
COLOR	WHITE
Height (cm)	26.2
Width (cm)	76.9
Depth (cm)	23
Weight (kg)	7
INVERTER SYSTEM (YES/NO)	YES
FILTRATION SYSTEM (YES/NO)	YES
PM 2.5 (YES/NO)	YES
SMARTPHONE COMPATIBLE	NO
SLEEP MODE (YES/NO)	YES
FAST COOLING (YES/NO)	YES
SEASONAL ENERGY EFFICIENCY RATIO (SEER)	18.8
COOLING CAPACITY (BTU)	17276
AUTOMATIC AIR OUTLET (YES/NO)	YES
COMPRESSOR WARRANTY (YEAR)	5
SPARE PARTS WARRANTY (YEAR)	5
ENERGY-SAVING LABEL	1-STAR NO.5 ENERGY EFFICIENCY

Free installation according to HomePro standards.

What customers will receive

Servicing for installing ceiling suspended/wall-type air conditioner unit (9000 - 18000 BTU)
Wiring/conduit routing utilizes surface-mounted installation method.
Service fee includes labor cost and standard installation equipment such as electric wires, ground wires, and breaker determined by the company.
180-Day warranty
Servicing duration: 120-150 minutes
Customer shall prepare air conditioner unit.
Installation service is exclusively for new air conditioners. We reserve the right to refuse providing installation for previously installed old AC units.

If you have bad experiences of poor services from unprofessional technicians, our service ensures you high satisfaction and the best results. Having an A/C unit falsely installed can cause serious structural damages, such as wall cracking, paint peeling, leakage, and more than you can imagine. Installation of A/C units in a professional manner requires qualified technicians with specialized skills in the area. Home Service by Homepro offers you our high-standard air conditioner installation service. Our technicians, with criminal record carefully checked, will be there to help you, ensuring the most satisfying service results.

Service Procedure:

Inspect and recommend the areas or positions of installation
Properly install the air conditioner along with laying surface wiring and ducting at the designated spot.
Recheck and run the operation test after installation
Hand over the completed work to the customer along with providing suggestions and guidelines.

Terms and Conditions

Rescheduling/alteration of the servicing date can be feasible at least 2 days prior to the servicing date.
Liability coverage for any possible damages of items or properties caused by the team will be compensated according to the actual price but is limited to the twice amount of the service fee.
The company reserves all rights to preclude these flowing circumstances.

Customer hires third party/unaffiliated personnel to fix, alter, or modify the works of the company.
Customer hires the company’s service team to perform or carry other tasks or procedures apart from what is stated in the service report sheet without informing the company or the company’s consent.
Improper usage/maintenance, accidents or parts that exceed expiration date

In case the worksite height exceeds 3 meters, an additional charge of scaffolding will be applied.
In case of additional equipment provided by the customer, 50% of their total price or value will be additionally charged as the labor cost.
Service completion will be deemed final once the customer or induvial on behalf of the customer signs for the completion of service acceptance. There shall be additional charges for any further changes required by the customer.
Inquiry of permits and security deposit with any government agencies, legal entity of housing estate/condominium, or neighbors must be handled and sorted out by the customer.
For further inquiries or additional services, please reach out to “HomePro Service” counter at all HomePro stores or contact Call Center 1284 / Line ID: @homeproservice.

Standard equipment for installation

Air conditioner size 13,001 - 18,000 BTU
- 1

  Electric wire VAF 2 x 4 Sq.mm.

  8

  metre
- 2

  PVC tube size3/8” grey

  4

  metre
- 3

  Rubber 3" for setting up condensing unit ( additional installation from the standard)

  1

  set
- 4

  THW cable 1x2.5 sq.mm

  4

  metre
- 5

  Drain pipe under hot coil

  1

  set
- 6

  Breaker + box

  1

  set

Price of equipment in excess of standard

Check list AIR Update (ส่วนเกินมาตรฐาน)
- 1

  Cost of demolishing old machine

  set

  750
- 2

  Electric wire VAF 2x2.5 Sq.mm.

  metre

  40
- 3

  Electric wire VAF 2 x 4 Sq.mm.

  metre

  60
- 4

  Electric wire VAF 2x6 Sq.mm.

  metre

  80
- 5

  Chemical solution Duct 1/4 “ - 5/8” + with insulation

  metre

  450
- 6

  PVC tube size3/8” grey

  metre

  40
- 7

  Syphon

  set

  2500
- 8

  ค่าบริการนั่งร้านความสูง 5 เมตร_EN

  metre

  2000
- 9

  Service fee for scaffolding height 6-8 meters

  metre

  3000
- 10

  Rubber 3" for setting up condensing unit ( additional installation from the standard)

  set

  200
- 11

  Ceiling repair cost

  SQM.

  1000
- 12

  PVC pipe size 3/8" - 3/4" white

  metre

  70
- 13

  Drain pipe under hot coil

  set

  50
- 14

  Service fee for cleaning the existing refrigerant piping system.

  set

  1500
- 15

  Flexible pipe fittings, air conditioner cover UF-75

  item

  75
- 16

  สายไฟ THW 2.5 Sqmm.

  metre

  40
- 17

  Equipment for ceiling repair size 3" (additional charge from standard)

  item

  80
- 18

  Ground wire THW 1.5 Sq.mm.

  metre

  15
- 19

  Circuit Breaker 30 Amp

  item

  300
- 20

  Breaker Haco 32A + box(3 Phases)

  item

  1000
- 21

  Electric wire Covering rail #4 plastic

  metre

  70
- 22

  Ground Rod 30 cm.

  point

  200
- 23

  Breaker + box

  set

  150
- 24

  Chemical solution Duct 6/8” + with insulation

  metre

  650
- 25

  ชุดท่อน้ำยาขนาด 7/8” + ฉนวนหุ้ม

  metre

  800
- 26

  Track for coveringchemical solution duct #75 (including joint in area of 1 m.)

  metre

  350
- 27

  Metal hanger for hot condensing unit, cold condensing unit

  set

  500
- 28

  Metal hanger for hot condensing unit, basket pattern

  set

  900
- 29

  Filling cold refrigerants gas #R22

  pounds

  30
- 30

  Filling cold refrigerants gas # R32A

  pounds

  30
- 31

  Filling cold refrigerants gas #R410A

  KG.

  750
- 32

  In case air conditioner's location ,model: INVERTOR, is changed (filling cold refrigerants gas R410A)

  KG.

  750
- 33

  Gouging wall work, any kind of terrazzo floor

  point

  2500
- 34

  Gouging wall, wooden floor, fiber works

  point

  1000
- 35

  ชุดโครงเหล็ก Support สำหรับผนังกระจก, บล็อคแก้ว, โลหะ

  set

  1000
- 36

  Gouge, drilling, ceiling repair (excluding painting).

  point

  300
- 37

  Ariflow Diurter

  item

  1000
